Wide Format Hybrid Inkjet Printers

Engineered Printing Solutions extends its product offering to include high-volume wide format hybrid inkjet printers. Our hybrid series of printers come in three different print widths: 63, 98, and 126 inches.  Designed for rigid, flexible, and rolled media up to two inches thick, our hybrid series of industrial inkjet printers can be configured with from two to four printheads in a single row, or four to eight printheads (in double rows) on the largest model.  For resolutions up to 3600 dpi, the largest Z126H can even have up to ten print heads in a symmetrical array! Print over 1500 ft2/hr at production quality.

FJetRH Series Wide Format Hybrid UV Printer

The FJet RH series is capable of printing with high speed and high precision at 1200 dpi. Designed for personalized processing enterprises to meet their high accuracy and mass-customization requirements. Featuring variable dots, true gray scale imaging 7, 14 and 21pl (Ricoh Gen5) | 5, 10 and 15pl (Ricoh Gen6)

Four vacuum zones ensure that media stay put.

  • Up to 799 ft²/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • LED curing standard
Download the brochure for all features and specifications

Download

FJetZH Series Wide Format Hybrid UV Printer

The FJetZH Series is the fastest flatbed printer in its segment. Featuring variable dots, true gray scale imaging 4, 6 and 10pl at true native dpi, the ZH series can print up to 1400 ft²/hr.

Multiple channels permit the use of additional process colors for extended color gamut.

  • FASTEST HYBRID IN ITS SEGMENT
  • Up to 1530 ft²/hr
  • Up to 2" thick media
  • Sizes: 63", 98" & 126"
  • 4 vacuum zones
  • Retractable registration bar
  • Linear motor, magnetic rail system option for Z126H
Download the brochure for all features and specifications

Download

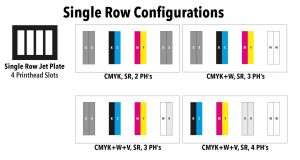

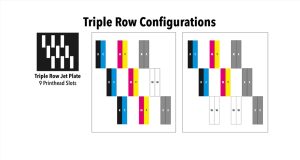

Sample Print Head Arrays

Features Common to All Model Hybrid Inkjet Printers

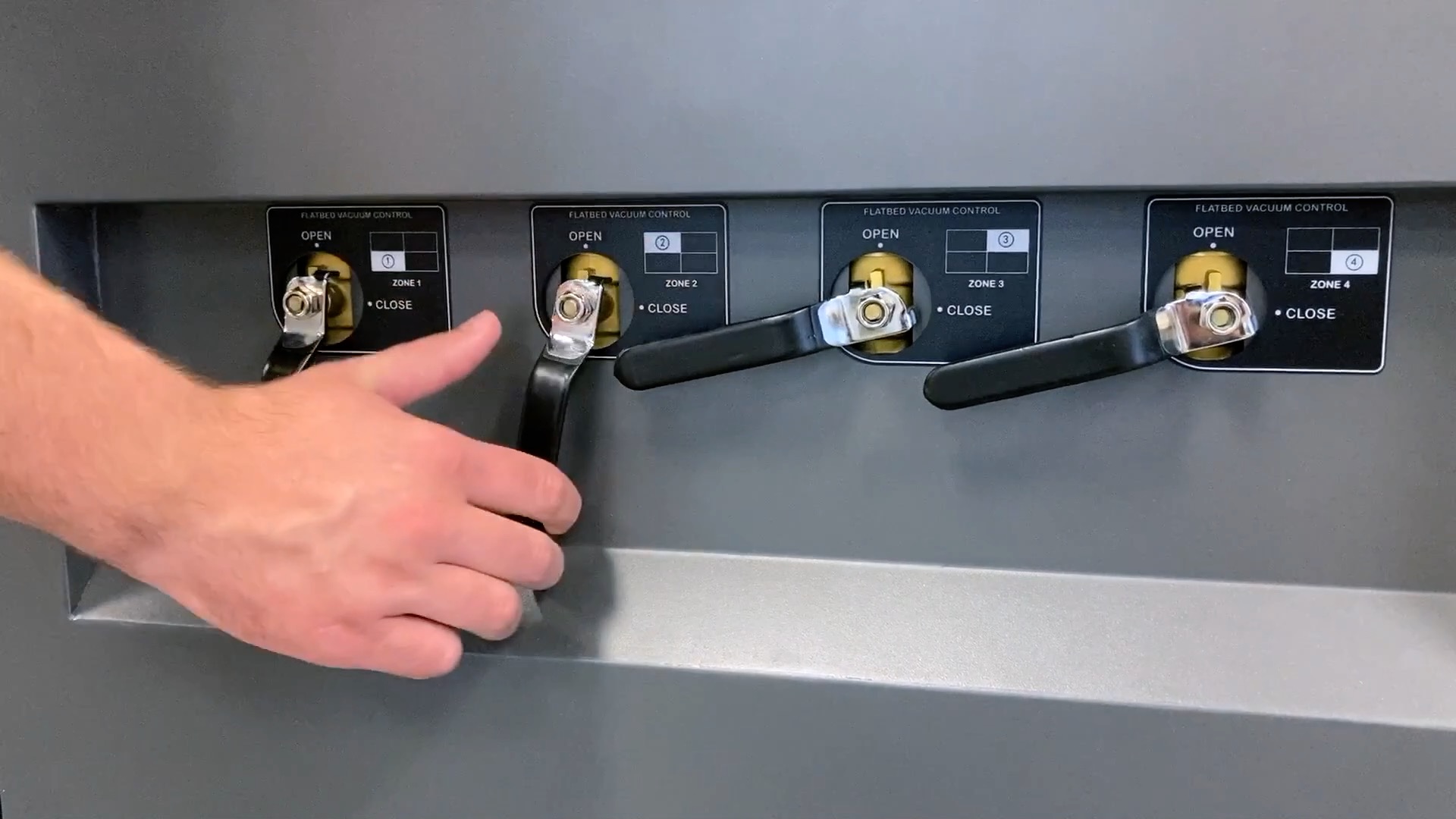

Four vacuum zones ensure media stay put.
Perfect registration every time.
Ink sets include C, M, Y, K, Lc, Lm, O, V

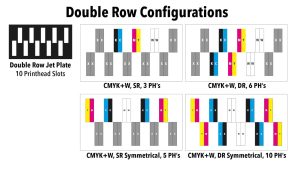

double print head array Printhead arrays can include 2-4 heads in a single row, or up to eight heads in a double array. You can even have 10 heads in a symmetrical array for resolutions up to 3600 dpi!
LED curing is standard on all models
All functions are controlled with an intuitive HMI.
All machines can print in either unidirectional or bidirectional mode.
Produce vivid colors and fine gradients with extended color gamuts.
