Single-Pass · Flat / Linear

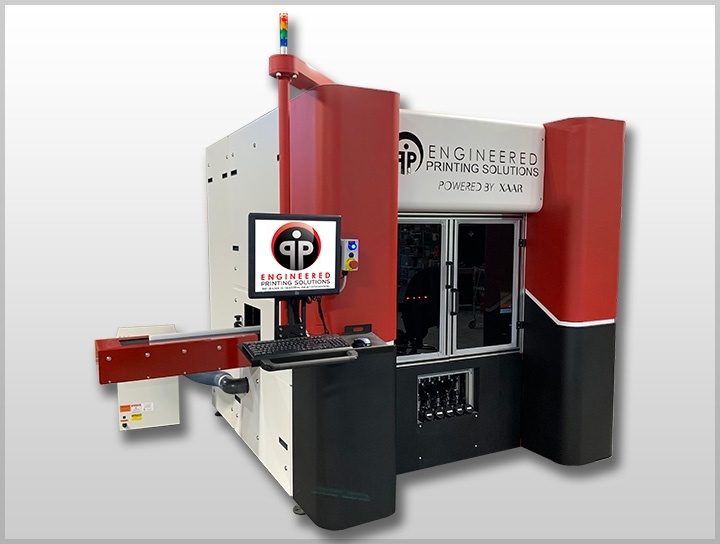

XD-Series
Flat single-pass production at up to 50 inches per second.
Up to 50 inches-per-second, WW + CMYK process color in one pass. UV-LED drop-on-demand curing. Customizable conveyor and automation packages for production-scale lines.
45,000 caps/hour, 400 4" lids per minute,up to 50 inch/sec print speed for any flat object45,000
Caps per hour
50 in/s
Print speed
WW + CMYK + OGV
Process color
Up to 6 levels
Grayscale
Features
- Capable of printing 2,000 bottle caps per min, 400 4" lids per min, up to 50 inch/sec.
- Drop-on-demand UV LED cure inks.
- Continuous multi-color printing in a single pass.
- High Quality WW+CMYK images with 4 levels of grayscale.
- Printing speeds up to 50 inches per second.
- The industrial inkjet printer is easy to operate and requires no special maintenance.
- Optional custom automation for parts handling, inline pretreatment and vision systems.
- High throughput and resolution.
Specifications
| Throughput | Up to 2000 caps/min, 400 yogurt lids/min |
|---|---|
| Print speed | Up to 50 inches per second |
| Widths | From 72mm to 220mm+ |
| Ink technology | Drop-on-demand UV LED cure |
| Color capability | WW + CMYK + OGV |
| Substrates | Flat and semi-flat surfaces |
Who this fits
Right fit when:
Right fit when
- Flat / linear part geometry
- High-volume production (caps, closures, flat industrial parts)
- Variable data and frequent changeover
- WW + CMYK process color in one pass
- Integration with conveyor / automation packages
Not sure which technology fits your line?
Five questions about your manufacturing environment. We recommend the optimal EPS process and platform — with no sales call required.
Take the Decoration Optimizer →Spec an XD Series for your line.
Talk to EPS engineering about throughput, integration, and ink configuration.
