Single-Pass · Compact
XD-LT
Compact single-pass platform.
Lower-cost entry to single-pass technology. Same printhead and ink set as XD-70 in a smaller footprint. For pilot work, proof-of-concept, or lower-throughput production.
Pilot / compact productionSame
Printhead as XD-70
UV-LED
Drop-on-demand
Compact
Footprint
Features
- Xaar Nitrox print heads (WW + CMYK).
- GIS print electronics for static data.
- CIMS II 450 ink management system.
- Integration Technologies UV pin and cure.

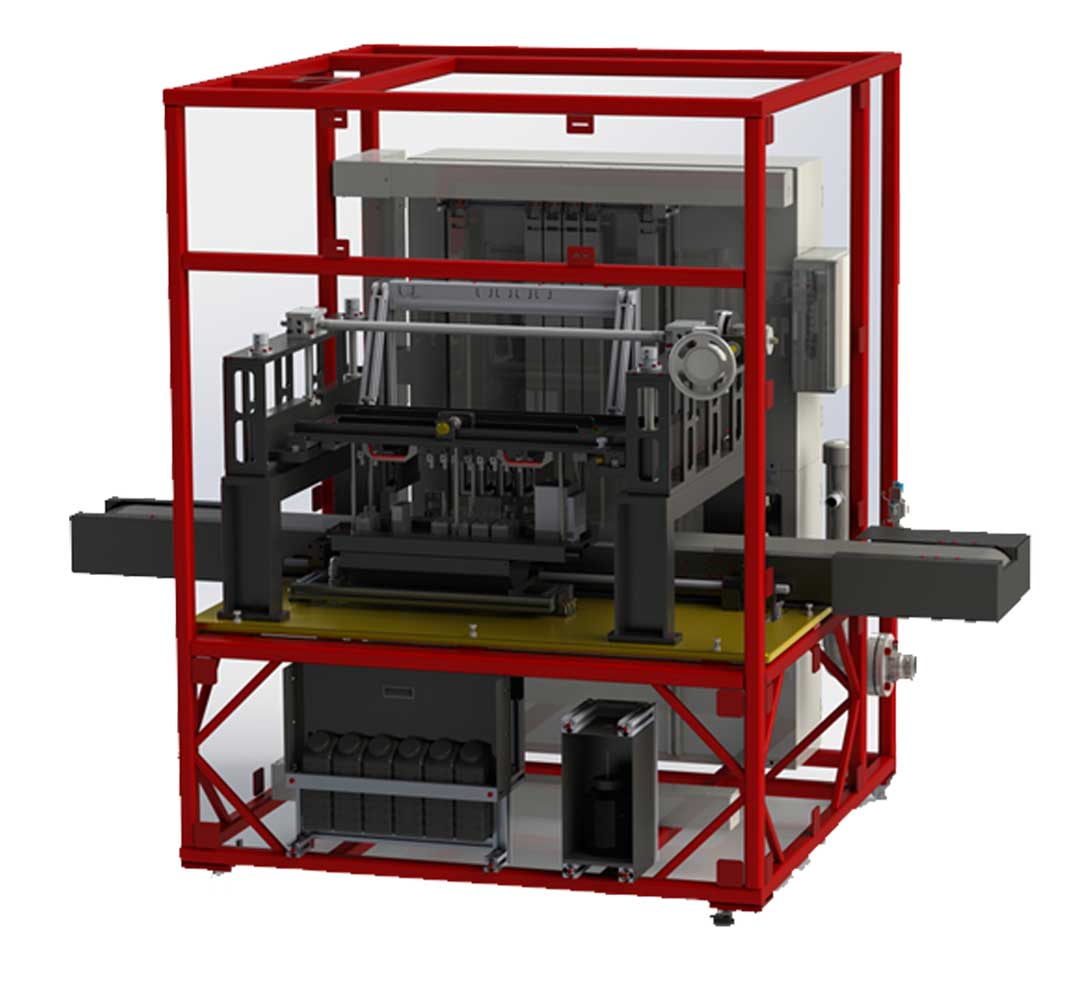

- Welded steel frame.
- Max printable product size: 6" H x 8" W.
- Standard conveyor design (14 in/s).
- Manual Z and cross-track adjustment.
- Maintenance waste tray.
- Ventilation hookup.
- Crash detect included for printhead protection.
- Beckhoff Industrial PC with standard HMI interface.
- Standard customer interface connector for I/O and E-Stop circuitry.
Specifications
| Print heads | Xaar Nitrox (WW + CMYK) |
|---|---|
| Print electronics | GIS for static data |
| Ink management | CIMS II 450 |
| UV cure | Integration Technologies pin & cure |
| Max product size | 6" H x 8" W |
| Conveyor speed | 14 in/s (standard) |
Who this fits
Right fit when:
Right fit when
- Validating single-pass technology before scaling
- Lower-volume production with single-pass economics
- Footprint or budget constraint vs XD-70
- Same ink and printhead workflow as production
Not sure which technology fits your line?
Five questions about your manufacturing environment. We recommend the optimal EPS process and platform — with no sales call required.
Take the Decoration Optimizer →Spec an XD-LT pilot.
Start with XD-LT, scale to XD-70 when volume grows.
